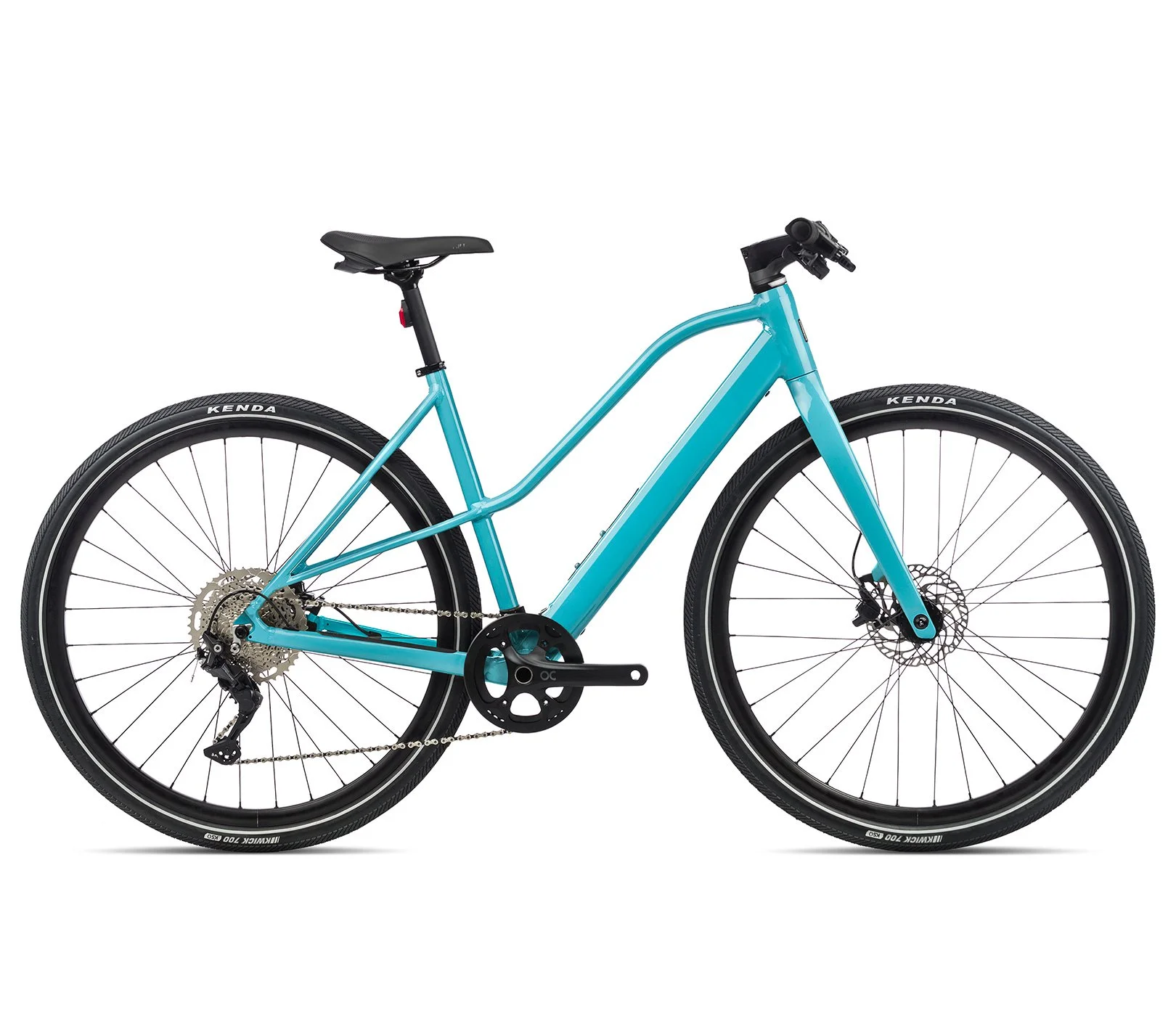

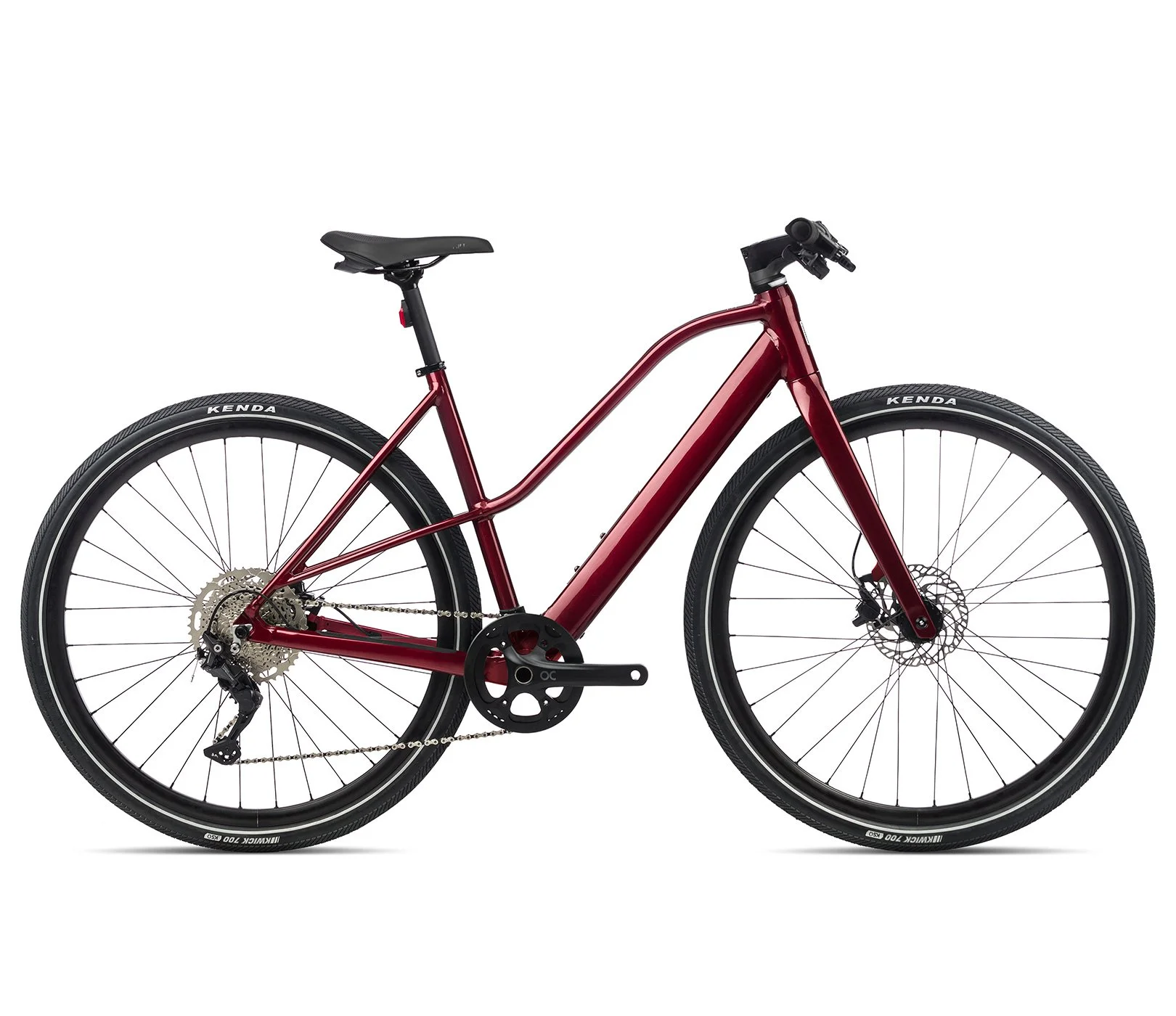

Orbea Vibe H30 Mid
Orbea Vibe H30 Mid
FRAME Orbea Vibe Mid Bar Hydro 6061 Hydroform Aluminum 2021, ICR cable routing, Forged BB, 135x9 QR, Flat Mount disc, 700x45 maximun tire, 1" 1/2 semi head set, 41x86,5 Pressfit BB, carrier and fenders compatible
FORK Orbea Vibe carbon fork, full carbon, 1-1/5, 700x45 maximun tire, flat mount disc mount, Thrue Axle12x100mm, Long mudguards compatible.
CRANKSET OC 42t, w/Chainguard
HEADSET Acros Alloy 1-1/2" Internal Cable Routing
HANDLEBAR Alloy 31.8mm 12mm Rise 700mm
STEM OC1 31.8mm interface -6º
SHIFTERS Shimano Deore M4100
BRAKES Magura MT30 Hydraulic Disc Easy Route Connection
CASSETTE Shimano CS-M4100 11-46t 10-Speed
REAR DERAILLEUR Shimano Deore M5120 SGS Shadow Plus
CHAIN KMC X10
WHEELS Ready GR
TYRES Kenda K1052 700x45C Reflective type+puncture protection
SEATPOST OC 27.2 Offset 0, for integrated light
SADDLE Selle Royal Lift 1215 URN 278x145mm
FRONT POSITION LIGHT Front position light, on head tube, COB Led, On/Off, 60 Lumen, ECE50.
FRONT LIGHT Consult other components
REAR LIGHT Lezyne FENDER STVZO seatpost mounting 11 lumens
QUICK STAND Consult other components
MOTOR Ebikemotion X35 Plus 25kmh
BATTERY Ebikemotion 36V/6.9A 248Wh ANT+
RANGE EXTENDER
DISPLAY Consult other components
CHARGER Ebikemotion X35
REMOTE Ebikemotion iWoc TRIO
FRONT WHEEL AXLE Orbea Thru Axle 12x100mm M12x2 P1 Hollow
VIBE SHEET MYO LITE
BELL Knog OI Classic
